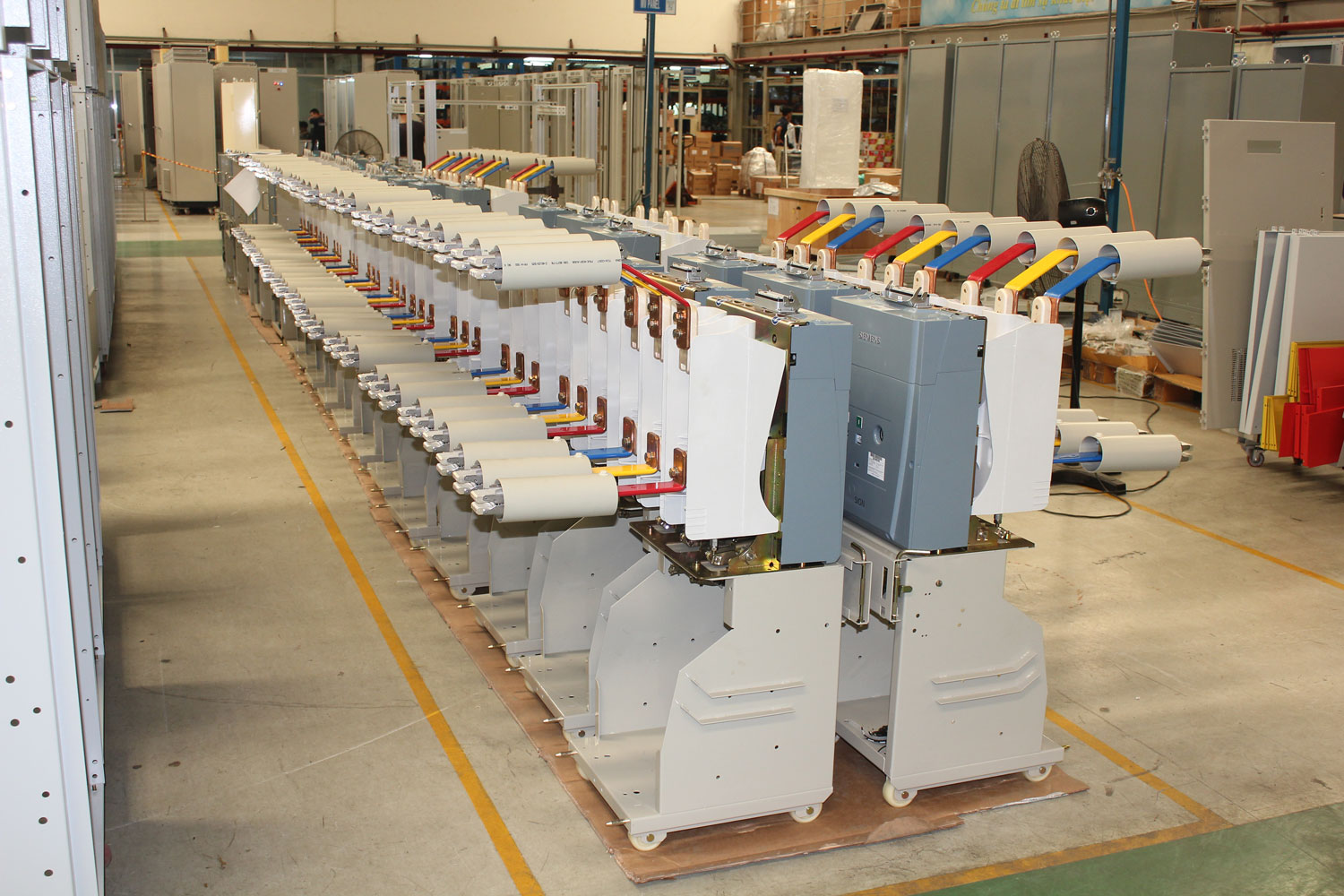

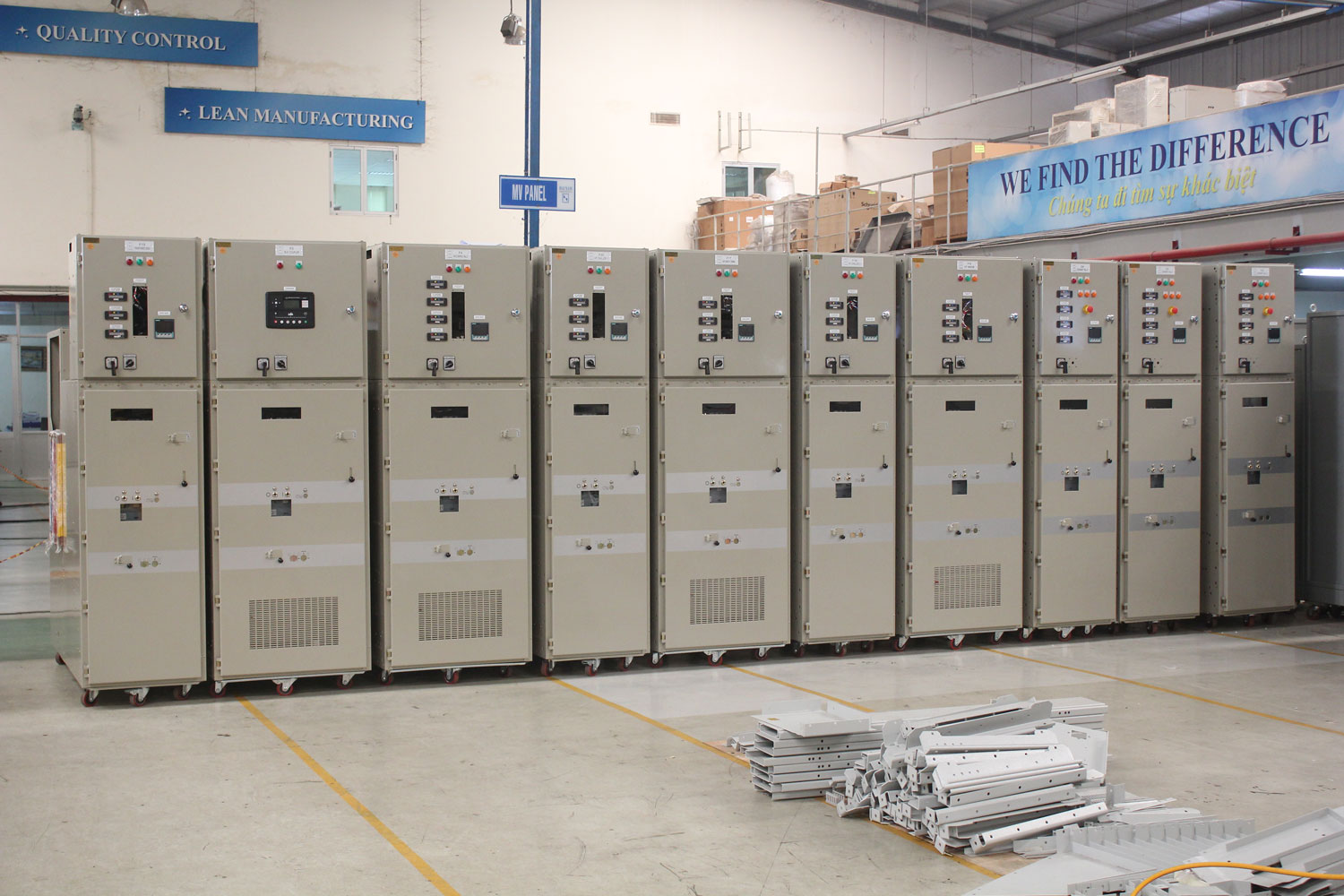

| Width (B)
Circuit-breaker panel </= 1250A 2500A, 3150A, 3600A Contactor panel Contactor panel Disconnecting panel </= 1250A 2500A, 3150A, 3600A Bus sectionalizer/ circuit-breaker panel </= 1250A 2500A, 3150A, 3600A Bus sectionalizer/ bus riser panel </= 1250A 2500A, 3150A, 3600A Metering panel |
Width (B)
Circuit-breaker panel 600mm (<31.5kA), 800mm (40kA) 800mm (<31.5kA), 800mm (40kA) 435/600mm (<31.5kA) 435mm (40kA) Disconnecting panel 600mm (<31.5kA), 800mm (40kA) 800mm (<31.5kA), 800mm (40kA) Bus sectionalizer/ circuit-breaker panel 600mm (<31.5kA), 800mm (40kA) 800mm (<31.5kA), 800mm (40kA) Bus sectionalizer/ bus riser panel 600mm (<31.5kA), 800mm (40kA) 800mm (<31.5kA), 800mm (40kA) 600mm (<31.5kA), 800mm (40kA) |
| Height (H)
H1 With standard low-voltage compartment and IAC 0.1s H2 With standard low-voltage compartment and IAC 1.0s H3 |
Height (H)
2253mm With standard low-voltage compartment and IAC 0.1s 2425mm With standard low-voltage compartment and IAC 1.0s 1780mm |
| Depth (T)
Standard |
Depth (T)
1860mm |
| Classification | IAC |
Accessibility
|
Type A Type A Type A |
| Test current (kA) Arc duration (s) |
25/31.5/40 0.1/1.0 |
Rated normal current of feeders
|
Rated normal current of feeders
3600 A 400 A |
| Partition class | PM (metallic partition) |
| Loss of service continuity category | LSC2B (metal-clad) |
Compartment accessibility (standard)
|
Compartment accessibility (standard)
Tool-based Interlock-controlled Tool-based Connection compartment Interlock-controlled and Tool-based Tool-based |
